LED

Total LEDs 1,224

Lumens 5130

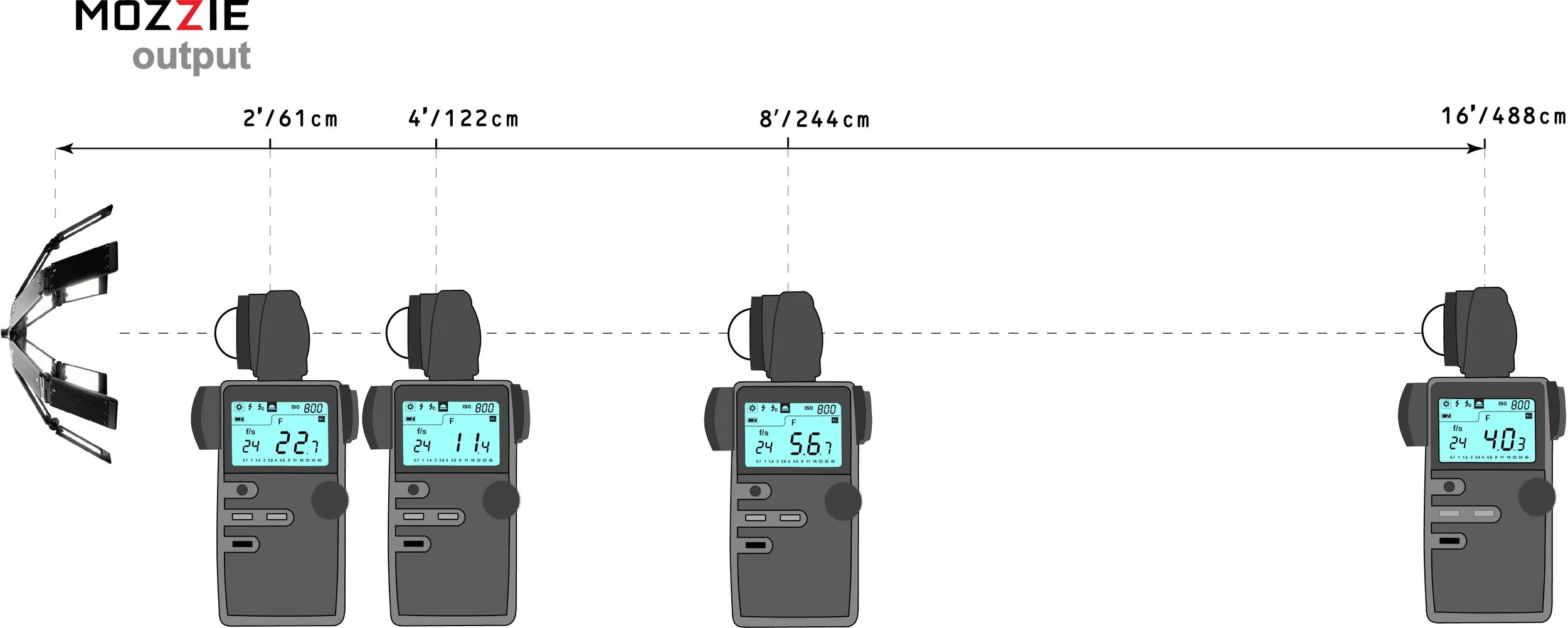

Exposure  24fps 1/48sec  800asa @ 100% 2’ /61cm - f22.7   |    4’ / 122cm - f11.4   |   16’  /  488cm - f4.0.3

Color range 2600 K to 6000 K

Dimming range 0 – 100%

Color rating 98++ CRI

HEAD

Head size open - parabolic 22.5”/57.15cm ø hex  x  7.5”/19.05cm parabola

Head size open - flat 29”/73.66cm ø hex  x  1”/2.5cm

Configurations Parabolic, flat, and folded

Head size closed 8”/20.32cm  x  6” /15.24 CM ø octa

Head weight 3lbs 4oz  /  1.47kgs

Materials 7071+6065 Aluminum, stainless steel and silicone plastics.

ELECTRONICS

Output voltage 24 VDC Constant voltage

Input voltage 90 – 305 V AC, 50/60hz Neutrik TRUE1 powerCon

Power 400 W

Power connectors 7 PIN   Bayonet locking system   PWM (PL7 connector)   IP 68

Ballast Protection Over current/voltage/temperature or short circuit.

Ballast IP rating IP20

Ballast size 14”/35cm L  x  5”/12.7cm H   x   7”/17.8cm W

Ballast weight 11lbs 11oz / 5.3kg

Head feeder length 14’ / 3.65m, 24’ / 7.3m

DATA

DMX connector Input/output 5 pin XLR connector

Service connector USB Type A – service center upgradeable

Data protocol DMX 512A

Wireless Built in LumenRadio

RIGGING

Mounting point 3/8” Thread front and back

Baby pin 3/8” Thread, 5/8” ø    x    3.5”/8.9cm

Mounting method Install the baby pin to the front or back of the light and attach to a 5/8” grip or any c-stand grip head

FABRICS

Diffusions 36” / 91.4cm  ø octagon  x   2 varied fabric diffusions w/hook edging for easy install

Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated, ready to accept accessories

CASE

Case type Injection molded waterproof case and a foam cut interior

Case size 12.5” x 21” x 24” / 31.75cm x 53cm x 70cm

Case weight - packed 49lbs / 22.2 kgs
