REDBACK with the Lot
REVIEWS I SPECIFICATIONS | ACCESSORIES
This REDBACKkittransforms into 3 configurations - CornCobb, Parabolic and Flat.
YOU GET
1 x REDBACK Head. Deployable 7075/6061 Aluminum Fixture with 3456 Litegear powered LED's.
1 x Parabolic Backing. 36” Octagon.
2 x Diffusions for REDBACKParabolic mode. Magic and 1/2 Grid. 36” Octagon..
1 x Diffusion storage bag.
1 x Teaser forParabolic mode. 180 degree, rigid fabric.
1 x LCD for Parabolic mode. 50 degree, 36” Octagon, Fabric Honeycomb.
1 x Ballast. LiteDimmer DUO 400 Hybrid 2600-6000k,400w, 24v, LumenRadio., 4ch.
1 x Neutrik PowerCon cable..
1 x Head feeder. 23’
1 x Handle grip.
2 x Baby pins for mounting fixtures to any grip head. Length 5” Diameter.5/8”.
1 x Case with custom foam insert by SKB.
Accessories included:
1 x 36” frame made from spring steel and covered with magic cloth diffusion.
1 x backing cover to prevent light spill.
1 x 3/8 thread eye bolt for tension hook.
1 x Aluminum tensioning hook.
1 x Para-cord tensioner.
1 x 180 degree DARKSIDER.
1 x Nylon carry case.
1 x Pistola Tilting Mount
1 x Panel Backing for Stealth. 72” Octagon.
1 x Sides for Stealth. 72” Octagon.
1 x Diffusion for Stealth. Magic. 72”. Octagon.
1 x LCD for Stealth. Fabric Honeycomb, 50 degree.. 72” Octagon.
1 x Shoulder Bag for Stealth.
1 x Flange for OctaPanel. 7.5” x 50” Octagon.
1 x 50” Soft honeycomb LCD.
1 x Diffusion for OctaPanel. Butter. 50” Octagon.
1 x Carry bag for OctaPanel. Neoprene.
1 x Umbrella set. 72” diameter. Silver Bounce, White Bounce and White Diffusion.
1 x Mount for umbrella.
3 x Umbrella shoulder bags.
1 x GEL set for Redback. 1/4 Plus Green, 1/2 Plus Green, Full CTB and Full CTO.
1 x Neoprene Pouch for GEL set.
check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or use the included tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver.
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
IN STOCK - usually ships same day.
REVIEWS I SPECIFICATIONS | ACCESSORIES
This REDBACKkittransforms into 3 configurations - CornCobb, Parabolic and Flat.
YOU GET
1 x REDBACK Head. Deployable 7075/6061 Aluminum Fixture with 3456 Litegear powered LED's.
1 x Parabolic Backing. 36” Octagon.
2 x Diffusions for REDBACKParabolic mode. Magic and 1/2 Grid. 36” Octagon..
1 x Diffusion storage bag.
1 x Teaser forParabolic mode. 180 degree, rigid fabric.
1 x LCD for Parabolic mode. 50 degree, 36” Octagon, Fabric Honeycomb.
1 x Ballast. LiteDimmer DUO 400 Hybrid 2600-6000k,400w, 24v, LumenRadio., 4ch.
1 x Neutrik PowerCon cable..
1 x Head feeder. 23’
1 x Handle grip.
2 x Baby pins for mounting fixtures to any grip head. Length 5” Diameter.5/8”.
1 x Case with custom foam insert by SKB.
Accessories included:
1 x 36” frame made from spring steel and covered with magic cloth diffusion.
1 x backing cover to prevent light spill.
1 x 3/8 thread eye bolt for tension hook.
1 x Aluminum tensioning hook.
1 x Para-cord tensioner.
1 x 180 degree DARKSIDER.
1 x Nylon carry case.
1 x Pistola Tilting Mount
1 x Panel Backing for Stealth. 72” Octagon.
1 x Sides for Stealth. 72” Octagon.
1 x Diffusion for Stealth. Magic. 72”. Octagon.
1 x LCD for Stealth. Fabric Honeycomb, 50 degree.. 72” Octagon.
1 x Shoulder Bag for Stealth.
1 x Flange for OctaPanel. 7.5” x 50” Octagon.
1 x 50” Soft honeycomb LCD.
1 x Diffusion for OctaPanel. Butter. 50” Octagon.
1 x Carry bag for OctaPanel. Neoprene.
1 x Umbrella set. 72” diameter. Silver Bounce, White Bounce and White Diffusion.
1 x Mount for umbrella.
3 x Umbrella shoulder bags.
1 x GEL set for Redback. 1/4 Plus Green, 1/2 Plus Green, Full CTB and Full CTO.
1 x Neoprene Pouch for GEL set.
check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or use the included tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver.
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
IN STOCK - usually ships same day.
REVIEWS I SPECIFICATIONS | ACCESSORIES
This REDBACKkittransforms into 3 configurations - CornCobb, Parabolic and Flat.
YOU GET
1 x REDBACK Head. Deployable 7075/6061 Aluminum Fixture with 3456 Litegear powered LED's.
1 x Parabolic Backing. 36” Octagon.
2 x Diffusions for REDBACKParabolic mode. Magic and 1/2 Grid. 36” Octagon..
1 x Diffusion storage bag.
1 x Teaser forParabolic mode. 180 degree, rigid fabric.
1 x LCD for Parabolic mode. 50 degree, 36” Octagon, Fabric Honeycomb.
1 x Ballast. LiteDimmer DUO 400 Hybrid 2600-6000k,400w, 24v, LumenRadio., 4ch.
1 x Neutrik PowerCon cable..
1 x Head feeder. 23’
1 x Handle grip.
2 x Baby pins for mounting fixtures to any grip head. Length 5” Diameter.5/8”.
1 x Case with custom foam insert by SKB.
Accessories included:
1 x 36” frame made from spring steel and covered with magic cloth diffusion.
1 x backing cover to prevent light spill.
1 x 3/8 thread eye bolt for tension hook.
1 x Aluminum tensioning hook.
1 x Para-cord tensioner.
1 x 180 degree DARKSIDER.
1 x Nylon carry case.
1 x Pistola Tilting Mount
1 x Panel Backing for Stealth. 72” Octagon.
1 x Sides for Stealth. 72” Octagon.
1 x Diffusion for Stealth. Magic. 72”. Octagon.
1 x LCD for Stealth. Fabric Honeycomb, 50 degree.. 72” Octagon.
1 x Shoulder Bag for Stealth.
1 x Flange for OctaPanel. 7.5” x 50” Octagon.
1 x 50” Soft honeycomb LCD.
1 x Diffusion for OctaPanel. Butter. 50” Octagon.
1 x Carry bag for OctaPanel. Neoprene.
1 x Umbrella set. 72” diameter. Silver Bounce, White Bounce and White Diffusion.
1 x Mount for umbrella.
3 x Umbrella shoulder bags.
1 x GEL set for Redback. 1/4 Plus Green, 1/2 Plus Green, Full CTB and Full CTO.
1 x Neoprene Pouch for GEL set.
check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or use the included tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver.
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
IN STOCK - usually ships same day.
REDBACK SPEC SHEET
LED
Total LEDs 3,456.
Color range 2600K to 6500K.
Dimming range 0 – 100%.
HEAD
Head size open - parabolic 37”/95.2cm ø Octagon x 15.5” /39.4cm Parabola.
Head size open - flat 50”/127cm ø octa x 1”/2.5cm.
Configurations e.g. Parabolic, flat, folded. etc.

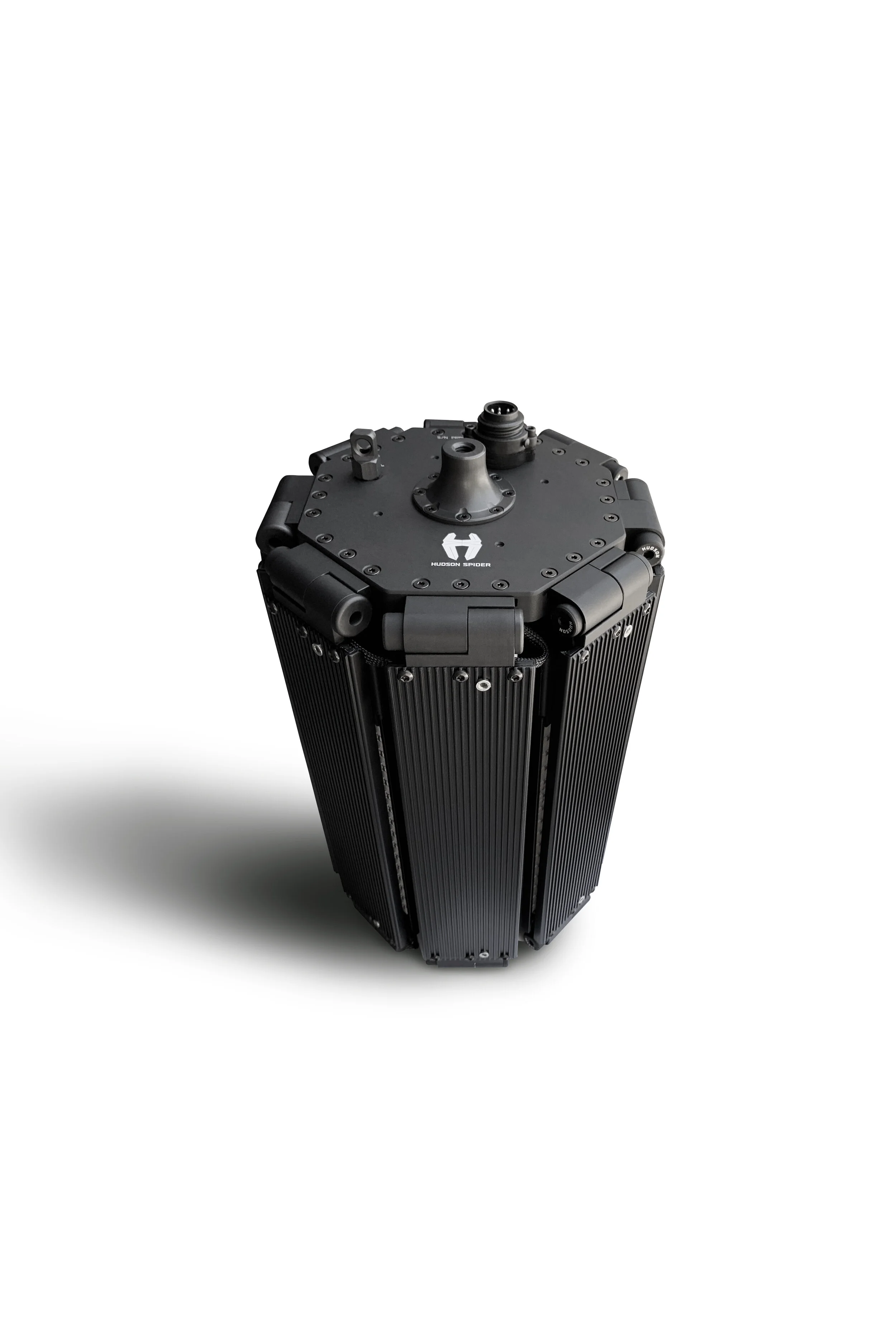

Head size closed 12”/30.5cm x 8” /20.3 CM ø octa.
Head weight 7lbs 4oz / 3.3kgs.
Materials 7071+6065 Aluminum, steel, copper and silicone plastics.
ELECTRONICS
Output voltage 24 VDC constant voltage.
Input voltage 90 – 305V AC, 50/60hz (C14 connector) Universal.
Power 400W.
Power connectors 7 PIN Bayonet locking system. IP 68.
Ballast Protection Over current/voltage/temperature or short circuit.
Ballast IP rating IP20.
Ballast size 14”/35cm L x 5”/12.7cm H x 7”/17.8cm W.
Ballast weight 11lbs 11oz / 5.3kg.
Head feeder length 24’ / 7.3m.
IEC cord set US.
DATA
DMX connector Input/output 5 pin XLR connector.
Service port USB Type A.
Data protocol DMX 512.
REDBACK SPEC SHEET
RIGGING
Mounting point 3/8” Thread front and back.
Baby pin 3/8” Thread, 5/8” ø x 3.5”/8.9cm.
Mounting method Install baby pin to front or back for a 5/8” grip head.
FABRICS
Diffusions 36” / 91.4cm ø Octagon x varied fabric.
Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated.
CASE
Case type Injection molded waterproof case with foam cut insert.
Case size 12.5” x 21” x 24” / 31.75cm x 53cm x 70cm.
Case weight - packed 49lbs / 22.2 kgs.
