MOZZIE™ Basic Kit
REVIEWS I SPECIFICATIONS | ACCESSORIES
This Kit includes everything you need to get a Mozzie™ up and running with some bonus accessories that will help create stunning results.
This MOZZIE™ transforms into 3 configurations - CornCobb, Parabolic and Flat
YOU GET
1 x MOZZIE™ Head. Deployable 7075/6061 Aluminium Fixture with 1224 LEDs.
1 x Ballast. Hybrid 2600-6000k LiteDimmerDUO 200w DC with either Gold or V-mount.

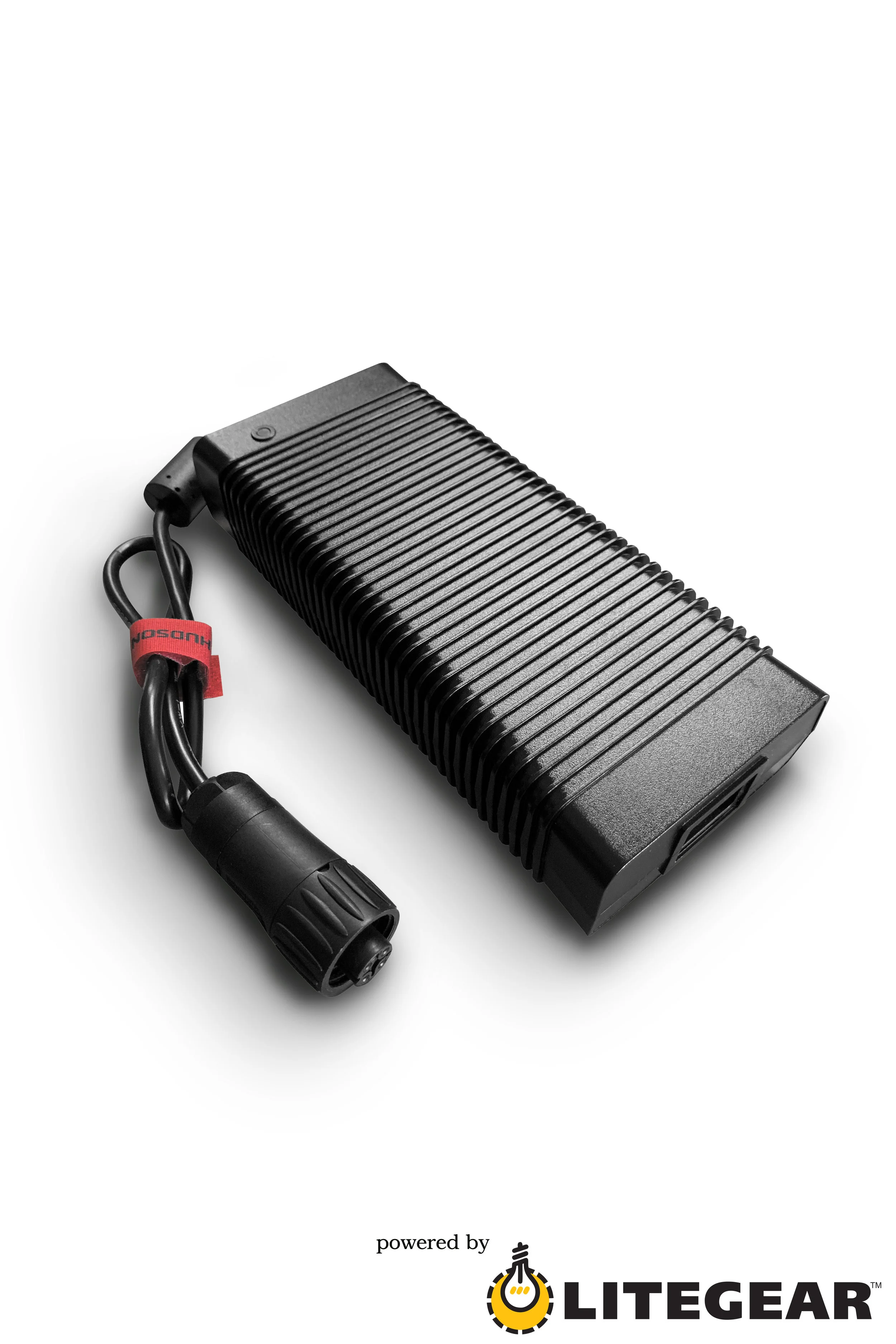

1 x AC/DC switching adaptor Input 100-240V AC, 50/60Hz, 4.5A.

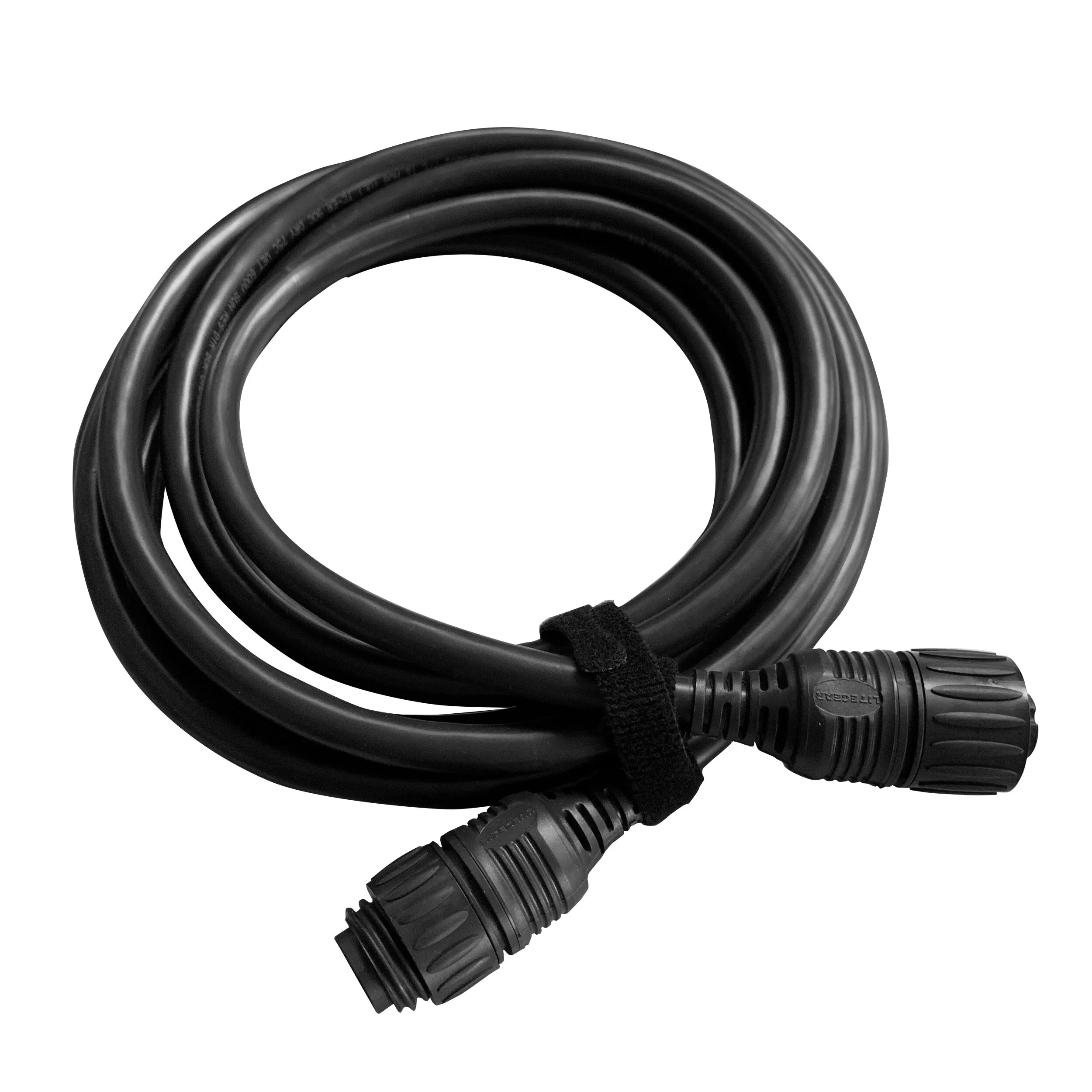

1 x Head feeder. 10’
1 x Parabolic Backing. 22” Hexagon.

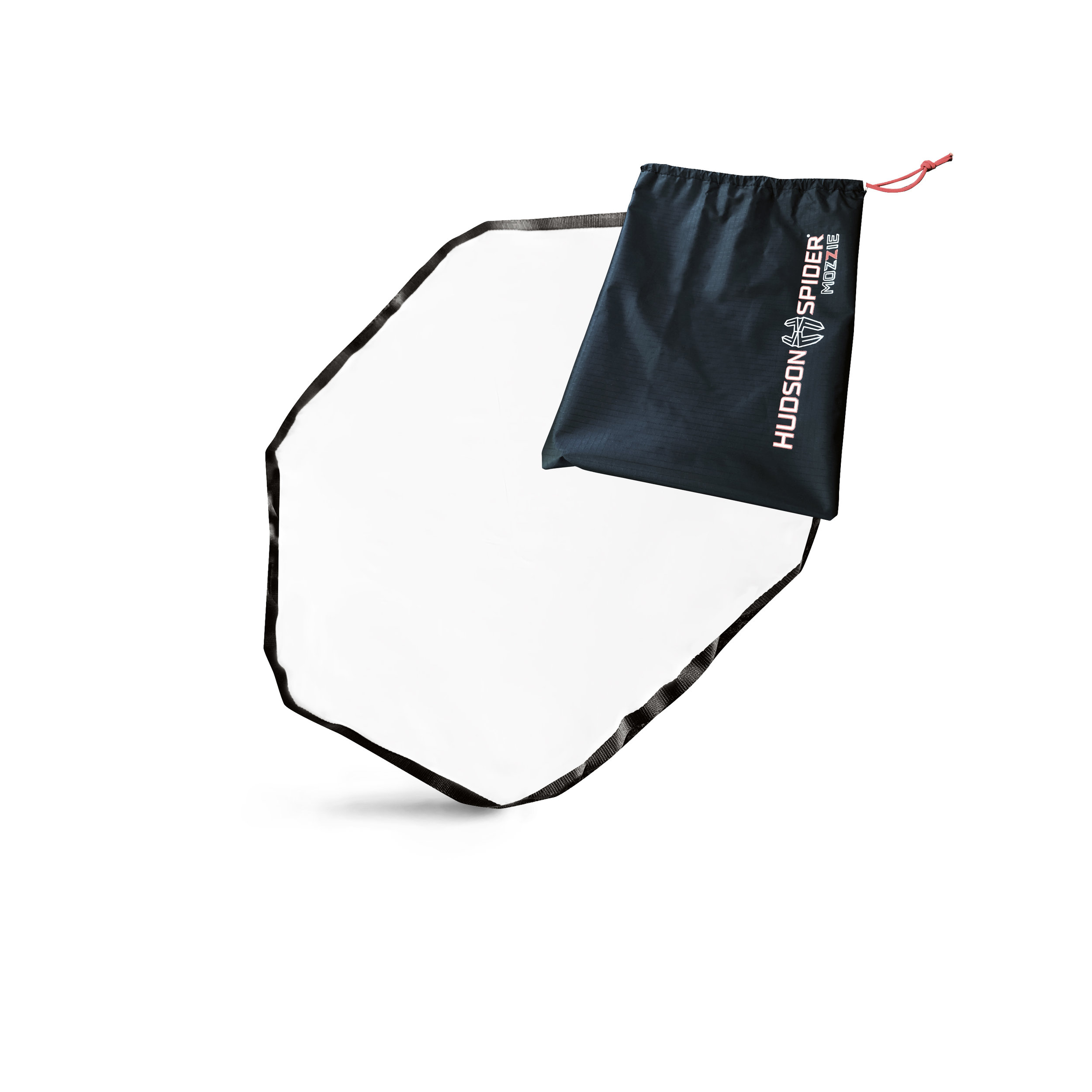

1 x Diffusion for MOZZIE™ Parabolic mode. 22” Hexagon.
1 x Diffusion storage bag.
1 x Baby pin for mounting fixture to any grip head. Length 5” Diameter.5/8”.

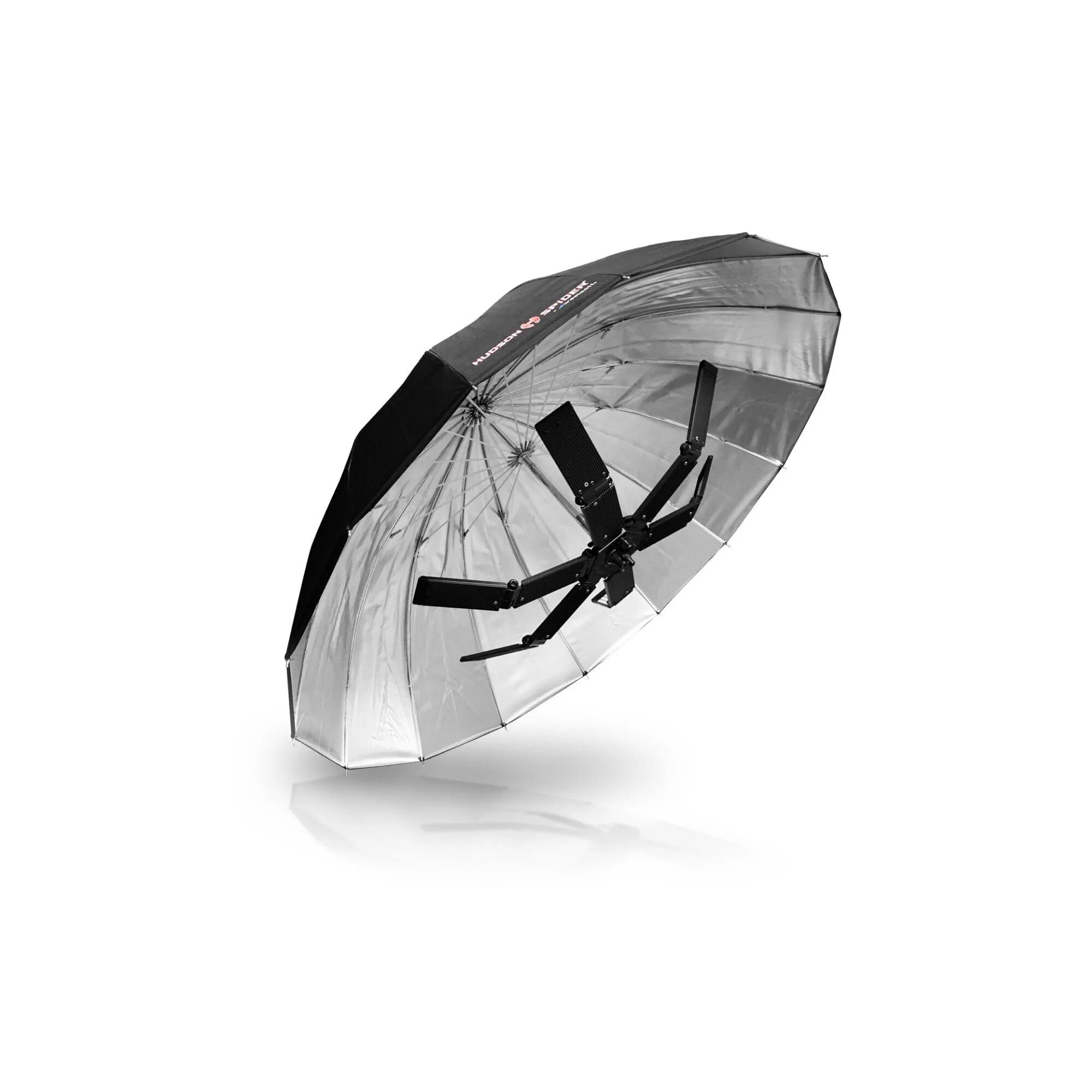

1 x Deep Umbrella. 43” diameter. Soft silver by Wescott
1 x Lightweight Umbrella. 72” diameter by Westcott. White bounce, Silver bounce or Diffusion.
1 x Umbrella mount.
1 x Case with custom foam insert by SKB.
Check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or our tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
Corn Cobb mode is enabled on all new units.
IN STOCK - usually ships same day.
REVIEWS I SPECIFICATIONS | ACCESSORIES
This Kit includes everything you need to get a Mozzie™ up and running with some bonus accessories that will help create stunning results.
This MOZZIE™ transforms into 3 configurations - CornCobb, Parabolic and Flat
YOU GET
1 x MOZZIE™ Head. Deployable 7075/6061 Aluminium Fixture with 1224 LEDs.
1 x Ballast. Hybrid 2600-6000k LiteDimmerDUO 200w DC with either Gold or V-mount.
1 x AC/DC switching adaptor Input 100-240V AC, 50/60Hz, 4.5A.
1 x Head feeder. 10’
1 x Parabolic Backing. 22” Hexagon.
1 x Diffusion for MOZZIE™ Parabolic mode. 22” Hexagon.
1 x Diffusion storage bag.
1 x Baby pin for mounting fixture to any grip head. Length 5” Diameter.5/8”.
1 x Deep Umbrella. 43” diameter. Soft silver by Wescott
1 x Lightweight Umbrella. 72” diameter by Westcott. White bounce, Silver bounce or Diffusion.
1 x Umbrella mount.
1 x Case with custom foam insert by SKB.
Check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or our tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
Corn Cobb mode is enabled on all new units.
IN STOCK - usually ships same day.
REVIEWS I SPECIFICATIONS | ACCESSORIES
This Kit includes everything you need to get a Mozzie™ up and running with some bonus accessories that will help create stunning results.
This MOZZIE™ transforms into 3 configurations - CornCobb, Parabolic and Flat
YOU GET
1 x MOZZIE™ Head. Deployable 7075/6061 Aluminium Fixture with 1224 LEDs.
1 x Ballast. Hybrid 2600-6000k LiteDimmerDUO 200w DC with either Gold or V-mount.
1 x AC/DC switching adaptor Input 100-240V AC, 50/60Hz, 4.5A.
1 x Head feeder. 10’
1 x Parabolic Backing. 22” Hexagon.
1 x Diffusion for MOZZIE™ Parabolic mode. 22” Hexagon.
1 x Diffusion storage bag.
1 x Baby pin for mounting fixture to any grip head. Length 5” Diameter.5/8”.
1 x Deep Umbrella. 43” diameter. Soft silver by Wescott
1 x Lightweight Umbrella. 72” diameter by Westcott. White bounce, Silver bounce or Diffusion.
1 x Umbrella mount.
1 x Case with custom foam insert by SKB.
Check out our Gallery and Testimonials
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand or our tilting Pistola™ mount, that mounts to a 5/8” pin or into a Junior receiver
* Please note- Our hinge design has changed from the pictured button locking type with limited stops, to an Omega friction type with infinite stops.
Corn Cobb mode is enabled on all new units.
IN STOCK - usually ships same day.
SPEC SHEET
LED
Total LEDs 1,224.
Color range 2600K to 6000K.
Dimming range 0 – 100%..
HEAD
Head size open - parabolic 22.5”/57.15cm ø hex x 7.5”/19.05cm parabola.
Head size open - flat 29”/73.66cm ø hex x 1”/2.5cm.
Configurations Parabolic, flat and folded.
Head size closed 8”/20.32cm x 6” /15.24 CM ø octa.
Head weight 3lbs 4oz / 1.47kgs.
Materials 7071+6065 Aluminum, stainless steel and silicone plastics.
ELECTRONICS
2 BALLAST OPTIONS 400w LiteDimmer, 200w LiteDimmer DC
DATA(LiteDimmer option)
DMX connector Input/output 5 pin XLR connector.
Service port USB Type A – service center upgradeable..
Data protocol DMX 512A.
Wireless Built in LumenRadio.
RIGGING
Mounting point 3/8” Thread front and back.
Baby pin 3/8” Thread, 5/8” ø x 3.5”/8.9cm.
Mounting method Install baby pin to the front or back thread for a 5/8” grip head.
FABRICS
Diffusions 22.5” /57.15cm ø octagon x varied fabrics.
Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated.
CASE
Case type Injection molded waterproof case and custom foam cut insert by SKB.
Case size 20” x 20” x 11” / 50.8cm x 50.8cm x 27.9cm.
Case weight - packed 30lbs / 13.6 kgs.
